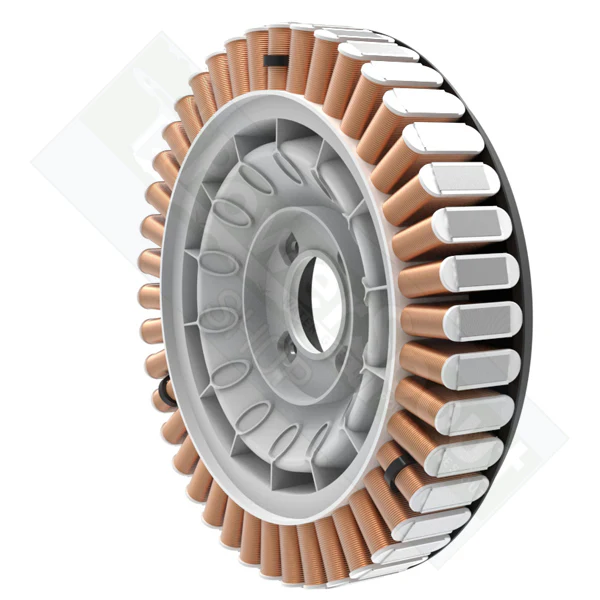

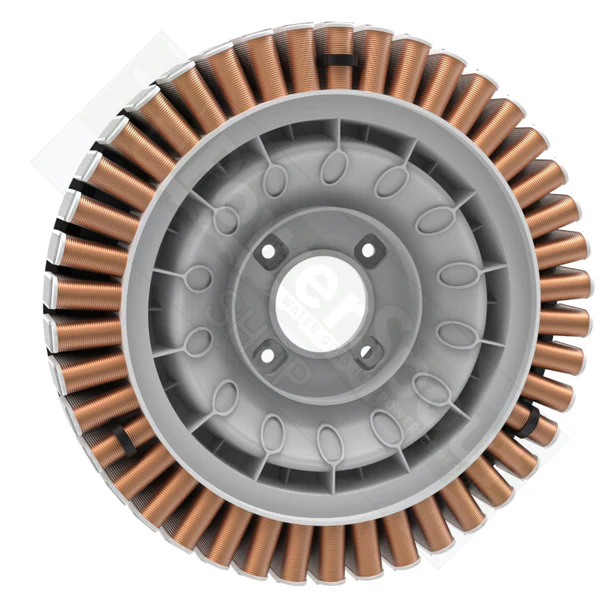

Smart Drive 42 Pole Stator

Between our 36 pole and 42 pole stators we offer over 90 options from 1.1V/rpm all the way down to 0.011V/rpm. This is 100 x voltage range in 1% steps (approx.) from 12V to 500V DC applications.

All 42 pole stators can be fitted with standard type 2 rotors (0.75W/rpm) or higher power type 2+ (0.85W/rpm). 42 pole stators are coggy which makes them unsuitable for wind turbine applications.

Please select your required V/rpm from the drop down list. If the V/rpm you require is not on this list please take a look at our 36 pole stators. Please also note that the V/rpm in the drop down menu is based on a type 2 rotor (a type 2+ rotor will be slightly higher in both volts and amps).

Refer to PowerSpout Document Index Links for a complete index of documents
