PLT & PowerClamp & SRNE MPPT Bundle - Hydro Turbine

PowerSpout Bundles are our most cost effective deals. They are only available through our dealers who can often offer discounted global freight.

The PLT, PowerClamp &  SRNE MPPT Bundle contains:

• PowerSpout PLT Turbine                                 PLT Install guide

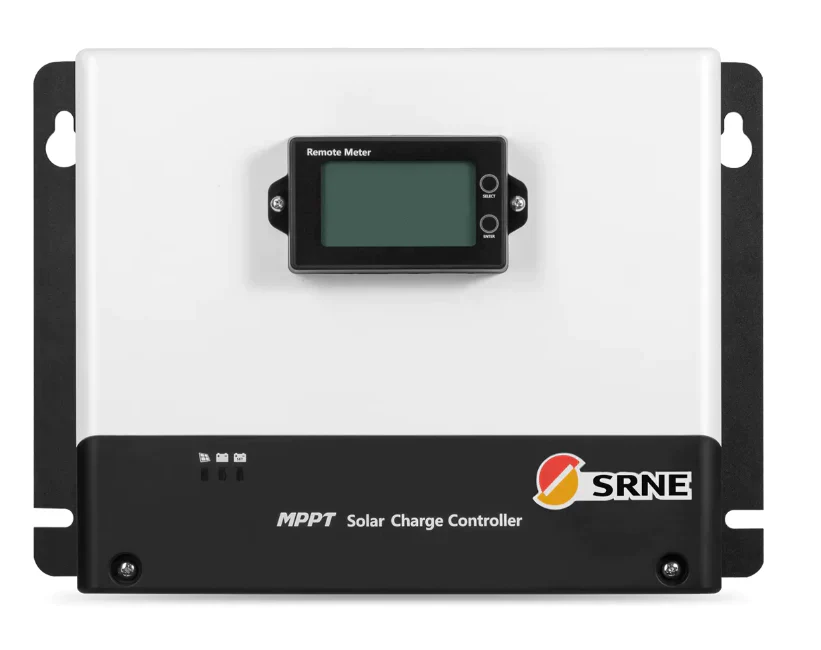

• SRNE 250V MPPT approved for hydro use     SRNE Install quide
• PowerClamp PC3                                             PowerClamp Install quide
• Rechargeable grease feeder

• 3 Spare Sets of Jets
• DHL Freight Insurance


Refer to each linked product item above for a full description.

Click here to watch a video an typical example a PowerSpout PLT80HP turbine and 250V SRNE MPPT operating at 600W when added to a home with an existing solar PV power system. Surplus power is automatically sent to the hot water tank.  Click here for a video of PowerSpout PLT Cube 80HP turbine operating.

Click here for a larger (remote village scale) hydro and PV power scheme, the equipment used may be different but it gives you a good idea of what is required.

Below is a summary table of the Powerclamp options that you can select when ordering this bundle. Select a turbine output power in the dropdown that is available and exceeds your turbine power.

Refer to PowerSpout Document Index Links for a complete index of documents.





Model	Turbine Design Voltage	Minimum Dump Voltage	Initial Dump Voltage	Maximum Dump Voltage	Crowbar Voltage
120V (ELV)	80	77	90	103	120
150V	100	95	110	125	150
250V (No Crowbar)	80	77	90	103	-
250V	170	163	190	217	250
450V	270	258	300	342	400
600V	270	258	300	342	400

Refer to PowerSpout Document Index Links for a complete index of documents.
